제품 상세정보
Place of Origin: China
브랜드 이름: HETECH
인증: ISO9001,ISO14001,ISO13485,IATF16949
Model Number: HCIG050V.CP1
지불과 운송 용어
Minimum Order Quantity: 100pcs
Delivery Time: 4-6weeks
Payment Terms: T/T
Supply Ability: 50K/month
P/N: |
HCIG050V.CP1 |
Size: |
5''(IPS) |
Display Type:: |
IPS |
Resolution: |
800*480 |
Outline dimension: |
120.70*75.80*15.30mm |
Active area: |
108.00*64.80mm |
Brightness: |
250cd/㎡ |
Interface: |
HDMI+USB |
Operation Temp.: |
0~60℃ |
Storage Temp.: |
-20~70℃ |
Contrast ratio: |
1000 |
Aspect rati16:9o: |
16:9 |
Support system: |
Win 7,Win8,Win10,Linux,Raspbian,Ubuntu,Kali,Kodi |
Application: |
Endoscope camera system, digital otoscope and medical HD video recorder |
P/N: |
HCIG050V.CP1 |
Size: |
5''(IPS) |
Display Type:: |
IPS |
Resolution: |
800*480 |
Outline dimension: |
120.70*75.80*15.30mm |
Active area: |
108.00*64.80mm |
Brightness: |
250cd/㎡ |
Interface: |
HDMI+USB |
Operation Temp.: |
0~60℃ |
Storage Temp.: |
-20~70℃ |
Contrast ratio: |
1000 |
Aspect rati16:9o: |
16:9 |
Support system: |
Win 7,Win8,Win10,Linux,Raspbian,Ubuntu,Kali,Kodi |
Application: |
Endoscope camera system, digital otoscope and medical HD video recorder |
| Attribute | Value |
|---|---|
| P/N | HCIG050V.CP1 |
| Size | 5''(IPS) |
| Display Type | IPS |
| Resolution | 800*480 |
| Outline dimension | 120.70*75.80*15.30mm |
| Active area | 108.00*64.80mm |
| Brightness | 250cd/㎡ |
| Interface | HDMI+USB |
| Operation Temp. | 0~60℃ |
| Storage Temp. | -20~70℃ |
| Contrast ratio | 1000 |
| Aspect ratio | 16:9 |
| Support system | Win 7,Win8,Win10,Linux,Raspbian,Ubuntu,Kali,Kodi |
| Application | Endoscope camera system, digital otoscope and medical HD video recorder |

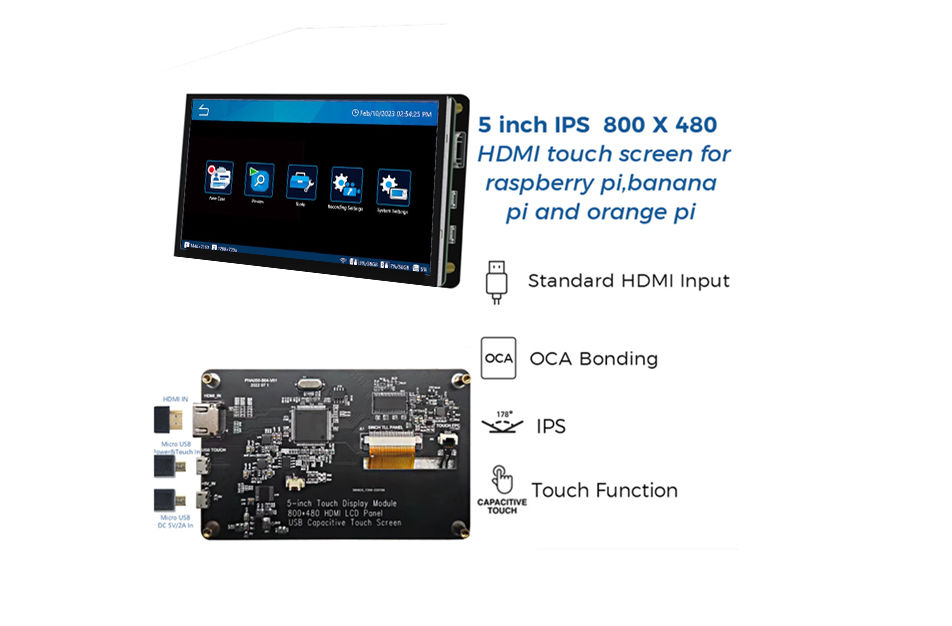

HCIG050V.CP1 is a 5-inch HDMI display engineered for precision and versatility. Featuring IPS technology and 800*480 resolution, this capacitive touch screen delivers crisp, vibrant visuals with a 1000:1 contrast ratio and 250 nits brightness. Users can enjoy consistent clarity from any angle with 80° wide viewing perspectives.
Designed for seamless integration with Raspberry Pi, Banana Pi, and Orange Pi, its compact active area of 108mm*64.8mm and outline dimension of 120.7mm*75.8mm*15.3mm fit space-sensitive setups. Built to endure, it operates flawlessly in 0~60℃ environments. Also, this display is perfect for medical applications like endoscope camera systems, digital otoscopes, or HD video recorder.
| P/N | HCIG050V.CP1 |
| Size | 5inch |
| Display type | IPS |
| Resolution | 800*480 |
| Outline Dimension(mm) | 120.70*75.80*15.30mm |
| Active Area(mm) | 108.00*64.80mm |
| Brightness(cd/m²) | 250 |
| Interface | HDMI+Micro USB |
| Voltage | 5V 2A |
| Operation Temperature | 0~60℃ |
| Storge Temperature | -20~70℃ |
| Aspect ratio | 16:9 |
| Contrast ratio | 1000 |
| Application | Endoscope camera system, digital otoscope and medical HD video recorder |
Warm reminds: if models listed below can't meet your requirements, customization can be made according to your specific requirements but it is not limited to LCM, RTP, CTP, driver board, etc.
| No. | Size | Part No. | LCD type | Resolution | Outline dimension | Active area | Interface | Contrast ratio | Brightness | Operation temperature | Storage temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 5'' | HCIG050V.CP | IPS | 800*480 | 120.70*75.80*15.30MM | 108.00*64.80mm | HDMI+ Micro USB | 1000 | 250 | 0~60℃ | -20~70℃ |
| 2 | 7" | HCTG070V.P01 | TN | 800*480 | 164.90*100.00*15mm | 154.08*85.92mm | HDMI+ Micro USB | 500 | 250 | 0~60℃ | 0~70℃ |
| 3 | 7" | HCIK070V.CC | IPS | 1024*600 | 164.90*100.00*15mm | 154.21*85.92mm | Mini HDMI +TypeC | 800 | 250 | 0~60℃ | 0~70℃ |
| 4 | 8" | HCTG080V.CP1 | TN | 800*480 | 192.80*116.90*22.00mm | 176.64*99.36mm | Micro HDMI +USB | 500 | 500 | 0~60℃ | 0~70℃ |
| 5 | 9" | HCIK090V.CB | IPS | 1024*600 | 211.10*126.50*19.00mm | 196.60*114.15mm | MINI HDMI +TYPE C | 800 | 500 | 0~60℃ | 0~70℃ |
| 6 | 10.1" | HCIK101V.CC | IPS | 1024*600 | 235.00*143.00*7.30mm | 222.72*125.28mm | HDMI+ Micro USB | 800 | 200 | 0~60℃ | 0~70℃ |
| 7 | 10.1" | HCIK101V.CD | IPS | 1024*600 | 230.7*150.3*22.8mm | 216.96*135.60mm | HDMI+TypeC | 800 | 400 | 0~60℃ | 0~70℃ |
| 8 | 11.6" | HCIX116V.CP2 | IPS | 1366*768 | 265*157.35*2.7mm | 256.16*144mm | HDMI+TypeC | 220 | 0~50℃ | -15~55℃ |
